API 6A-TYPE-6BX 138.0MPA (20000PSI)法兰的尺寸
发布时间：2023-03-13 点击数：854

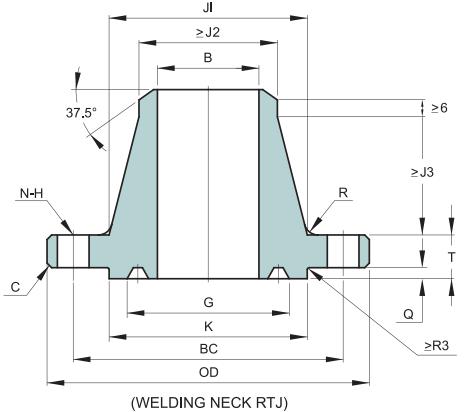

API 6A-TYPE-6BX 138.0MPA (20000PSI)法兰的尺寸
国内标准：GB/T 22513-2013 石油天然气工业 钻井和采油设备 井口装置和采油树
| Size | B | OD | C | E1 (MAX.) |
Q | G | K | T | J1 | J2 | J3 | J4 (MIN.) |
R | BC | N | H | BX Number |
| 1 13/16" | 46.8 | 255 | 3 | 6.0 | 5.56 | 77.77 | 117 | 63.5 | 133.4 | 109.5 | 49.2 | 10 | 203.2 | 8 | 29 | 151 | |
| 2 1/16" | 53.2 | 285 | 3 | 6.4 | 5.95 | 86.23 | 132 | 71.5 | 154.0 | 127.0 | 52.4 | 10 | 230.2 | 8 | 32 | 152 | |
| 2 9/16" | 65.9 | 325 | 3 | 7.2 | 6.75 | 102.77 | 151 | 79.4 | 173.0 | 144.5 | 58.7 | 10 | 261.9 | 8 | 35 | 153 | |
| 3 1/16" | 78.6 | 355 | 3 | 8.0 | 7.54 | 119.00 | 171 | 85.8 | 192.1 | 160.3 | 63.5 | 10 | 287.3 | 8 | 39 | 154 | |
| 4 1/16" | 104.0 | 445 | 3 | 8.8 | 8.33 | 150.62 | 219 | 106.4 | 242.9 | 206.4 | 73.0 | 10 | 357.2 | 8 | 48 | 155 | |
| 7 1/16" | 180.2 | 655 | 6 | 11.1 | 11.11 | 241.83 | 352 | 165.1 | 385.8 | 338.1 | 96.8 | 7.9 | 16 | 554.0 | 16 | 54 | 156 |
| 9" | 229.4 | 805 | 6 | 12.7 | 12.70 | 299.06 | 441 | 204.8 | 481.0 | 428.6 | 107.9 | 6.4 | 25 | 685.8 | 16 | 67 | 157 |
| 11" | 280.2 | 885 | 6 | 14.3 | 14.29 | 357.23 | 505 | 223.9 | 566.7 | 508.0 | 103.2 | 12.7 | 25 | 749.3 | 16 | 74 | 158 |
| 13 5/8" | 346.9 | 1160 | 6 | 15.9 | 15.88 | 432.64 | 614 | 292.1 | 693.7 | 628.6 | 133.3 | 14.2 | 25 | 1016.0 | 20 | 80 | 159 |
