PN10带颈对焊法兰的尺寸 ~ EN1092-1

PN10带颈对焊法兰的尺寸 ~ EN1092-1

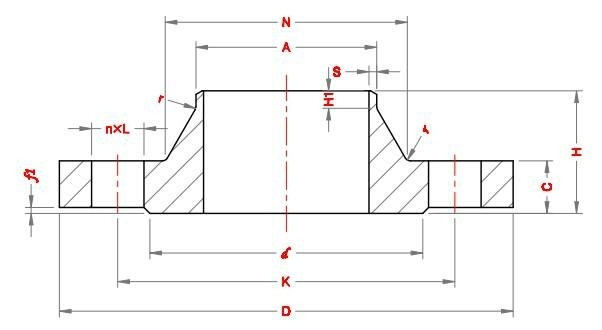

DN	Pipe OD A / mm	Connection Dimension					Diameter of Raised Face d / mm	Height of Raised Face f1 / mm	Flange thickness C / mm	Length of Flange H / mm	Neck
		Outside Diameter D / mm	Diameter of Bolt Circle K / mm	Diameter of Bolt Holes L / mm	Bolt						N / mm	Smin / mm	H1 / mm	r / mm
		Outside Diameter D / mm	Diameter of Bolt Circle K / mm	Diameter of Bolt Holes L / mm	No. n / pcs	Size					N / mm	Smin / mm	H1 / mm	r / mm
10	17.2	90	60	14	4	M12	40	2	16	35	28	2.0	6	4
15	21.3	95	65	14	4	M12	45	2	16	38	32	2.0	6	4
20	26.9	105	75	14	4	M12	58	2	18	40	40	2.3	6	4
25	33.7	115	85	14	4	M12	68	2	18	40	46	2.6	6	4
32	42.4	140	100	18	4	M16	78	2	18	42	56	2.6	6	6
40	48.3	150	110	18	4	M16	88	3	18	45	64	2.6	7	6
50	60.3	165	125	18	4	M16	102	3	18	45	74	2.9	8	6
65	76.1	185	145	18	8	M16	122	3	18	45	92	2.9	10	6
80	88.9	200	160	18	8	M16	138	3	20	50	105	3.2	10	6
100	114.3	220	180	18	8	M16	158	3	20	52	131	3.6	12	8
125	141.3	250	210	18	8	M16	188	3	22	55	156	4.0	12	8
150	168.3	285	240	22	8	M20	212	3	22	55	184	4.5	12	10
200	219.1	340	295	22	8	M20	268	3	24	62	234	6.3	16	10
250	273.0	395	350	22	12	M20	320	3	26	68	292	6.3	16	12
300	323.9	445	400	22	12	M20	370	4	26	68	342	7.1	16	12
350	355.6	505	460	22	16	M20	430	4	26	68	385	7.1	16	12
400	406.4	565	515	26	16	M24	482	4	26	72	440	7.1	16	12
450	457	615	565	26	20	M24	532	4	28	72	488	7.1	16	12
500	508	670	620	26	20	M24	585	4	28	75	542	7.1	16	12
600	610	780	725	30	20	M27	685	5	30	82	642	8.0	18	12
700	711	895	840	30	24	M27	800	5	35	85	746	8.8	18	12
800	813	1015	950	33	24	M30	905	5	38	96	850	8.8	18	12
900	914	1115	1050	33	28	M30	1005	5	38	99	950	12.5	20	12
1000	1016	1230	1160	36	28	M33	1110	5	44	105	1052	12.5	20	16
1200	1219	1455	1380	39	32	M36	1330	5	55	132	1256	12.5	25	16
1400	1422	1675	1590	42	36	M39	1535	5	65	143	1460	14.2	25	16
1600	1626	1915	1820	48	40	M45	1760	5	75	159	1666	16.0	25	16
1800	1829	2115	2020	48	44	M45	1960	5	85	175	1868	17.5	30	16
2000	2032	2325	2230	48	48	M45	2170	5	90	186	2072	17.5	30	16
2200	2235	2550	2440	56	52	M52	2370	5	100	202	2275	20.0	35	18
2400	2438	2760	2650	56	56	M52	2570	5	110	218	2478	22.2	35	18
2600	2642	2960	2850	56	60	M52	2780	5	110	224	2700	25.0	40	18
2800	2845	3180	3070	56	64	M52	3000	5	124	244	2900	25.0	40	18
3000	3048	3405	3290	62	68	M56	3210	5	132	257	3110	32.0	45	18
